What Is API Integration and How Does It Work?.

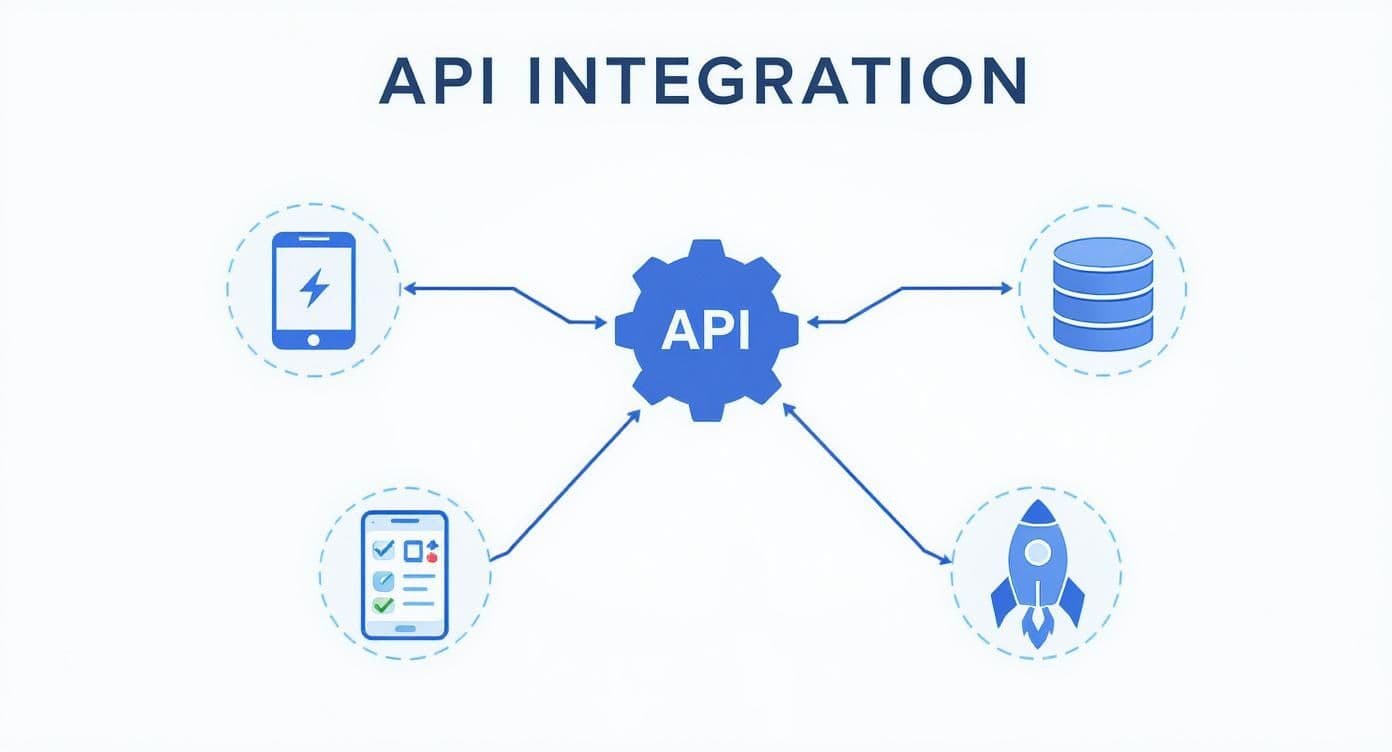

API integration is the process of connecting two or more software applications through their APIs, so they can exchange data and trigger actions automatically, with nobody copying information between them by hand.

This is now the default way software gets built, not a specialist add-on. Around 82% of organisations have adopted an API-first approach, on SQ Magazine's 2026 usage research. Most of the tools you buy assume you will connect them to something. It is now a routine part of modern software development.

Key Takeaways

• API integration connects applications through their APIs so data moves automatically.
• An API is the interface. The integration is the working connection you build with it.
• Every integration follows one loop: request, authentication, processing, response, action.
• The four approaches are point-to-point, middleware, webhooks, and custom-built.
• Most businesses own far more software than they have connected. That gap is where the manual work hides.

The socket is the API. The adapter is the bit somebody still has to build.

What Is API Integration? (a Plain-English Definition)

An API integration is a working connection between two pieces of software, built using the interface one of them publishes for exactly that purpose.

Take a booking system and a payment provider. The booking system holds the appointment. The payment provider holds the card processing. Neither knows the other exists. An integration is the engineering that lets the booking system say "take payment from this customer" and understand the answer that comes back.

The word "automatically" is doing the heavy lifting. Before the integration exists, somebody exports a spreadsheet on a Friday. After it exists, the data moves the moment it changes, and the Friday job goes away.

What Is the Difference Between an API and an API Integration?

An API is a published set of rules. An API integration is what you build with those rules.

Think of the API as a plug socket fitted to the wall of an application by the people who made it. It specifies the shape, the voltage, and what happens if you push the wrong thing into it. It sits there whether anyone uses it or not.

The integration is the appliance you wire in. Your code, your authentication, your error handling, your decisions about what to do when the socket goes dead at 2am. The API is provided to you. The integration is yours to build, test, and maintain. There is more to read on what sits behind the API.

This matters commercially. "They have an API" is often quoted as if the work were done. It means the work is now possible.

Request in, response out. Nobody wanders into the kitchen themselves.

How Does API Integration Work, Step by Step?

Every API integration, however complex, runs the same five-step loop.

1. The request. Your application sends a message to a specific address on the other system, called an endpoint. The message states what you want (fetch this order, create this customer, cancel this booking) and carries any data needed to do it.
2. Authentication. The receiving system checks you are allowed to ask. This is usually an API key, which identifies your application, or OAuth, which lets a user grant your app limited access to their account without handing over a password.
3. Processing. The receiving system does the work: it looks up the record, writes the new row, charges the card.
4. The response. It sends back a status code saying whether it worked, plus the data you asked for, almost always formatted as JSON.
5. The action. Your application does something with the answer. Shows the price. Updates the dashboard. Sends the confirmation email.

The Bit Everyone Skips

Steps one to five are the happy path, and the happy path is the easy half.

The other half is what your application does when step four never arrives, or arrives saying "429, too many requests", or arrives with a field that was a number last week and a string this week. That is where the engineering time goes, and why a connection that demos in an afternoon takes weeks to make trustworthy. We build that resilience layer in frameworks like Laravel.

Point-to-point, five systems in. This is what the arithmetic looks like from behind.

What Are the Main Types of API Integration?

There are four common patterns. Most businesses end up with a mix.

Point-to-point. One direct connection between two systems, written for that pair. Fast to build and easy to reason about. The catch is arithmetic: connect five systems this way and you have ten connections to maintain, each with its own failure mode.

Middleware and iPaaS. A platform sits in the middle, and every system connects to it rather than to each other. Pre-built connectors, logging, and retry handling out of the box. You also get a subscription and a ceiling on how far you can bend it.

Webhooks. The direction reverses. Instead of your system asking "anything new?" every minute, the other system messages you the moment something happens. Efficient for events like a payment clearing, but you need a reliable endpoint waiting. A reliable endpoint is a question of hosting and infrastructure.

Custom-built. Written for your systems and your logic. The answer when the process is genuinely yours, when a legacy system has no connector, or when the off-the-shelf option gets 80% of the way and stops.

The shop never sees your card number. That is not politeness, it is an API.

What Does API Integration Look Like in the Real World?

You have used several already today.

Checkout. An online shop never touches your card number. It passes the transaction to a payment gateway through an API and waits for a yes or no. The shop keeps selling; the gateway keeps the compliance burden. We walk through integrating a payment gateway in depth elsewhere.

Travel search. A flight comparison site owns no aircraft. It fires requests at dozens of airline systems at once and assembles the responses into one list. The product is an API integration wearing a search box.

Social login. "Continue with Google" does not hand your password to the new app. The app asks Google to vouch for you, and Google returns a token saying yes. That is OAuth doing exactly what step two described. The same token model underpins open banking APIs.

What It Looks Like When We Build One

Our own work with Boiler Juice is the same idea applied end to end. We integrated multiple systems to streamline their customer journey, so a user can get a quote and place an order without anyone rekeying anything between the systems sitting behind it. The customer sees one smooth path. Underneath, several separate platforms are having a conversation. The tools behind connections like that make up the tech stack we build on.

The Pattern Underneath

In each case, one business decided not to build something another business had already built properly. That is the strategic point of API integration, and the reason the API management market is worth about $16.29 billion in 2026 on Orbilon Tech's figures. Connecting has become cheaper than building.

The Friday export. Seven in ten of your tools are quietly funding this job.

Why API Integration Matters for a Growing Business

The scale of this is easy to underestimate until you count.

The average enterprise now handles around 354 APIs, on ONEiO's 2026 state-of-integration research. That is up from roughly 200 two years earlier. It is not a technology trend so much as a governance problem arriving quietly.

The more revealing number is the gap. Organisations run about 897 applications on average, DreamFactory reported in February 2026. They successfully integrate only around 28% of them. Seven in ten of the tools a business pays for are not talking to anything.

Where That Gap Costs You

That 72% is not an abstraction. It is the spreadsheet somebody exports every Friday. It is the customer address that is right in the CRM and wrong in the invoicing system. It is the sales figure two people disagree about because they opened different tools.

Each disconnected system is a small manual tax, charged weekly, forever. API integration is how you stop paying it. Our web application development team builds these connections into bespoke platforms.

Month nine. The integration did not break loudly, it just stopped agreeing.

Should You Build a Custom Integration or Buy a Connector?

Buy the connector when the problem is standard. Build when the problem is yours.

A pre-built connector is the right call when both systems are mainstream, the data is ordinary (contacts, invoices, orders), and the logic is a straight copy from A to B. Somebody has solved that already and you should let them. An estimated 70% of new applications are expected to use low-code or no-code tooling by 2026, on Integrate.io's analysis, much of it assembled from exactly these pre-built connections.

When Bespoke Earns Its Keep

Custom development starts to pay when one of four things is true:

• No connector exists. Your warehouse system is from 2009 and nobody has written one.
• The logic is the business. Your pricing rules, your approval chain, your allocation model. Generic tools flatten precisely the thing that makes you different.
• The volume is serious. Per-operation pricing on a middleware platform stops looking clever once the operations get big enough.
• The connector nearly works. This is the dangerous one. Off-the-shelf gets you 80% of the way, and the remaining 20% turns into workarounds that cost more than building it properly would have.

A sensible answer is often both: connectors for the commodity plumbing, bespoke work where the value actually sits. That bespoke work sits at the heart of web app development in the UK.

Budget for the mapping and the testing. The connecting was never the expensive part.

Is API Integration Secure? What Goes Wrong

APIs are secure when they are designed to be, and they are attacked constantly.

API attack volume rose about 113% year on year, ZeroThreat found in April 2026. The average company now faces roughly 258 API-targeted attacks every day. Every integration you build is a door, and doors get tried.

The Four Things That Keep One Standing Up

• Authentication done properly. Keys in a secrets manager, never in the codebase, never in a front-end bundle. OAuth scopes limited to what the integration needs.
• Rate limiting and back-off. Respect the other system's limits and retry sensibly. A retry loop with no back-off is a self-inflicted denial of service.
• Error handling that fails safely. When the other end goes down, your system should queue, alert, and carry on, not take your checkout with it.
• Monitoring. APIs change through versioning, and a working integration can break because someone else shipped on a Tuesday. You want to hear that from your alerts, not your customers.

That principle drove our work on the My Pension ID platform, which relied on integrations to manage sensitive user data safely. Once the data is personal, authentication and error handling stop being engineering detail and start being the product.

How Long Does API Integration Take to Build?

There is no useful single answer, but there is a reliable set of factors.

A clean, well-documented modern API with a straightforward data mapping is a small piece of work. What extends it is rarely the code. It is the documentation quality, whether the other system has a sandbox to test against, how much of your data needs reshaping, how many edge cases the business logic hides, and whether anyone can get you credentials. Reshaping that data is its own discipline, covered in our data migration strategies.

Budget for the mapping and the testing, not the connecting. Teams that get burned underestimated the second half of that list. The fix is to map the integrations early.

Frequently Asked Questions

What is API integration in simple terms?

It is connecting two pieces of software so they share data automatically. One application asks another for information or asks it to do something, using the interface that application publishes. The result is that data you would otherwise copy by hand moves on its own, the moment it changes.

What is the difference between an API and an API integration?

The API is the published interface: the rules for how to ask another system for something. The API integration is the working connection you build using those rules. The API exists whether you use it or not. The integration is your code, your authentication, and your error handling on top of it.

What is REST versus webhook-based integration?

REST is a request style: your system asks, the other system answers. Webhooks reverse it: the other system tells you the moment something happens, without being asked. REST suits fetching data on demand. Webhooks suit reacting to events, and they avoid the waste of polling for changes that have not happened.

Do I need a developer for an API integration?

Not always. Connecting two mainstream cloud tools with a standard data flow is often achievable with no-code tooling. You need a developer once the systems are unusual, the data needs real transformation, the logic is specific to you, or your revenue depends on the integration staying up.

Where to Start

Pick the worst manual data transfer in your business, the one somebody does every week and complains about, and scope an API integration for that one job first. It proves the pattern, and usually pays for itself before the second one starts.

If the connection you need runs deeper than an off-the-shelf connector reaches, our team builds bespoke platforms with custom integrations for UK businesses. Tell us what your systems refuse to do and we will tell you honestly whether it needs building.
